Coin operated Stack Washer & Dryer - XTH-15S
Product Details:
X
Product Description
Manufacturer & Exporter of Coin operated Stack Washer & Dryer & Coin operated Stack Washer & Dryer - XTH-15S. Our product range also comprises of Washing & Processing Machinery, Water Extraction With Centrifuges and Industrial Drying Tumbler.

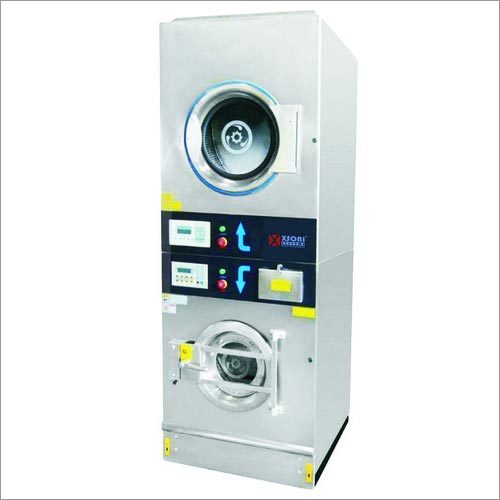

Coin operated Stack Washer & Dryer - XTH-15S
We offer coin operated Stack washer and dryer in different capacities (10, 12, 15 Kgs.)
Model: XTH-15S
Model: XTH-15S
- Washing capacity: 15kg
- Washing drum diameter: 590mm
- Washing drum depth: 460mm
- Washing drum volume: 125L
- Cleaning rotation: 40rpm
- Extractors speed: 800rpm
- Drying drums diameter: 740mm
- Washing drive motor: 1.5kw
- Washing heater: 5.25kw
- Dimension: 880*800*1975mm
- Baking heater 220/380v:7.5/15kw
- Fan power: 0.55
- For machine and capacitance: 14/22
- Intake: 1/2'
- Drain: 2"
- Drying drums volume: 220L
- Machine weight: 420kg
- Gross weight: 470kg
- Outlet: 100mm
- Drying drums depth: 500mm
- Baking speed: 46rpm
Double performance in half the space dynamic balancing cleaner clothes high efficient washer system the ultimate dry built better to last longer commercial-grade electronic control.
Technical Specification
| Model | Washer rated load | Dryer rated load | Washer cylinder volume | Dryer cylinder volume | Washing speed | Dehydrating speed | Washer Motor | Dryer Motor | Total Net Weight | External Size (mm) | Packing size | Gross Weight |
| Element Power | Element Power | |||||||||||
| XTH08E | 8 kg | 8 kg | ø580x310 | ø680x450 | 45 r/min | 500 r/min | 0.75kW | 0.37kw | 390 kg | 800x950x2150 | 1.92 CBM | 450 kg |
| 7.5 kw | 8 kw | |||||||||||
| XTH10E | 10 kg | 10kg | ø580x380 | ø680x570 | 45 r/min | 500 r/min | 1.1 kW | 0.37 kw | 460kg | 800x1070x2150 | 2.24 CBM | 510 kg |
| 9 kW | 10kW | |||||||||||
| XTH15E | 15kg | 15kg | ø580x460 | ø680x680 | 45r/min | 500r/min | 1.5kW | 0.37kW | 550kg | 800x1190x2150 | 2.43 CBM | 600 kg |
| 12kW | 12kW |
- Two or three automatic self cleaning tanks of high capacity.
- Nylon self cleaning filter or cartridge with active carbons.
- Basket, distillator, air channel, button trap, filters housing, water separator in stainless steel.
- Danfoss valves for saving water, Still float switch level control (Overfill Prevented)
- Water level control in still over the heating elementally stainless steel.
- Thermal overload relays on all motors.
- Closed circuit with Copeland scroll refrigerator (the most silent & efficient on the market).
- Double lint filter with huge surface and possible automatic self cleaning.
- Distillator condenser in Fibreglass.
